xBot (Mine-spec version)
Drone-in-a-Box for Enterprise
Starting from
Incl. GST

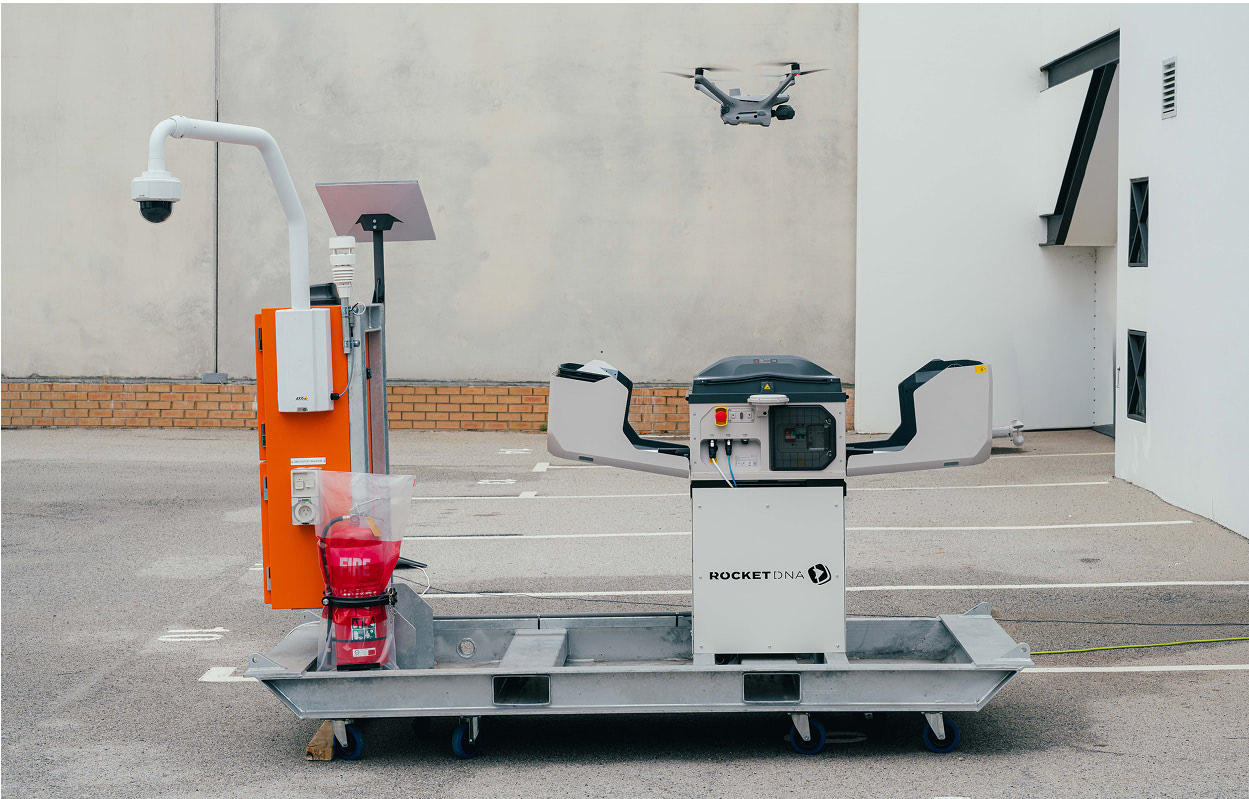

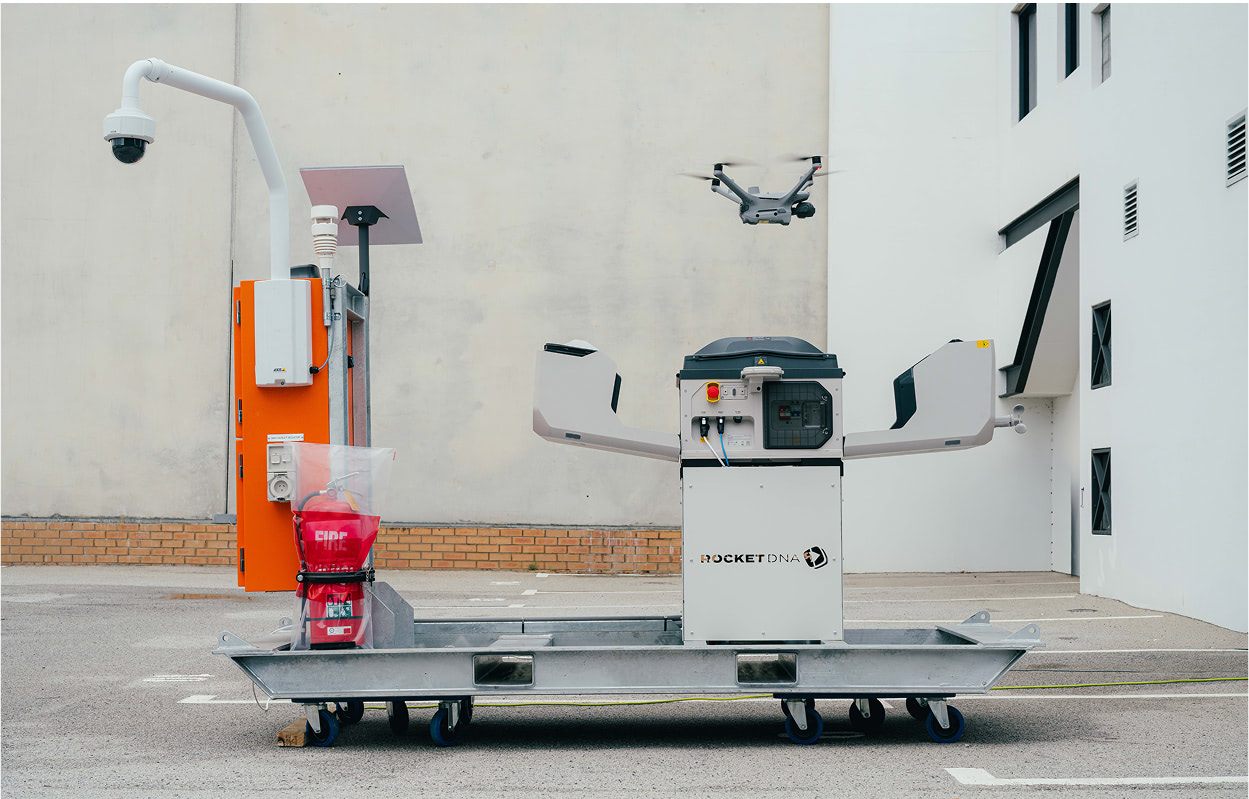

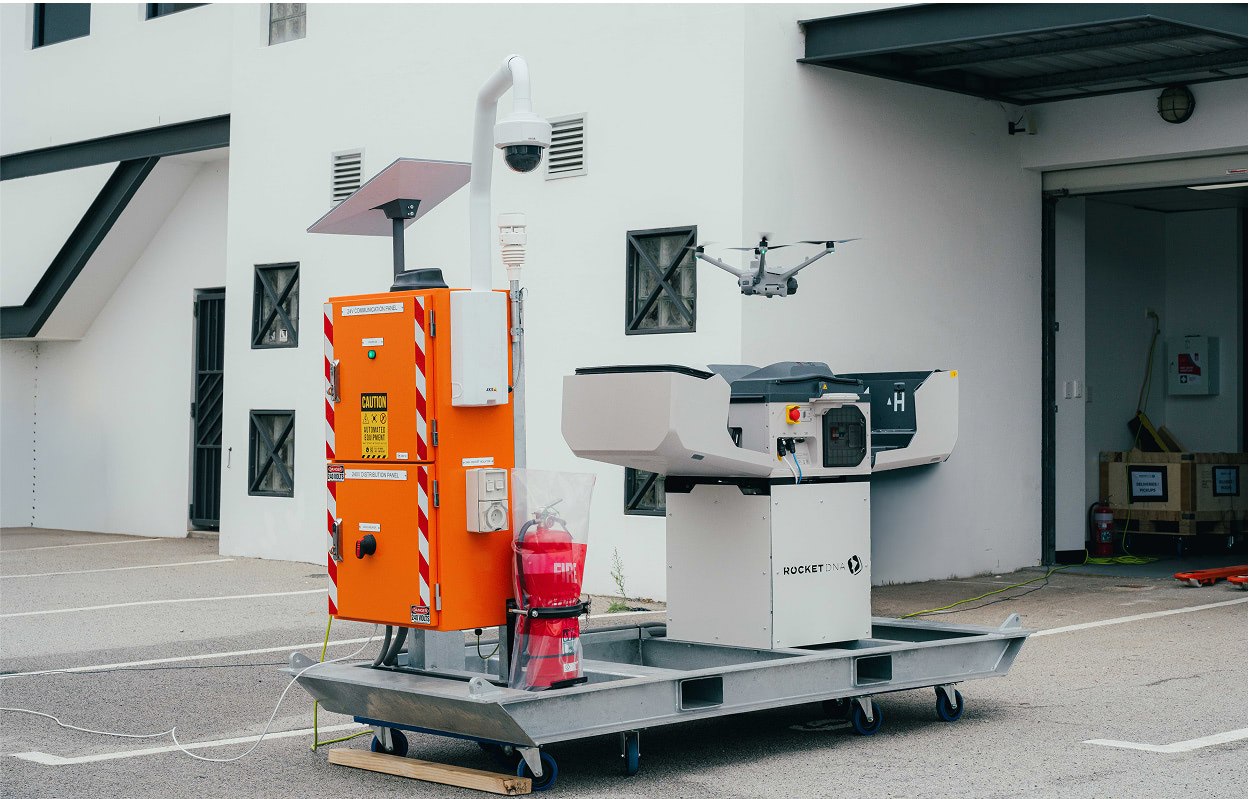

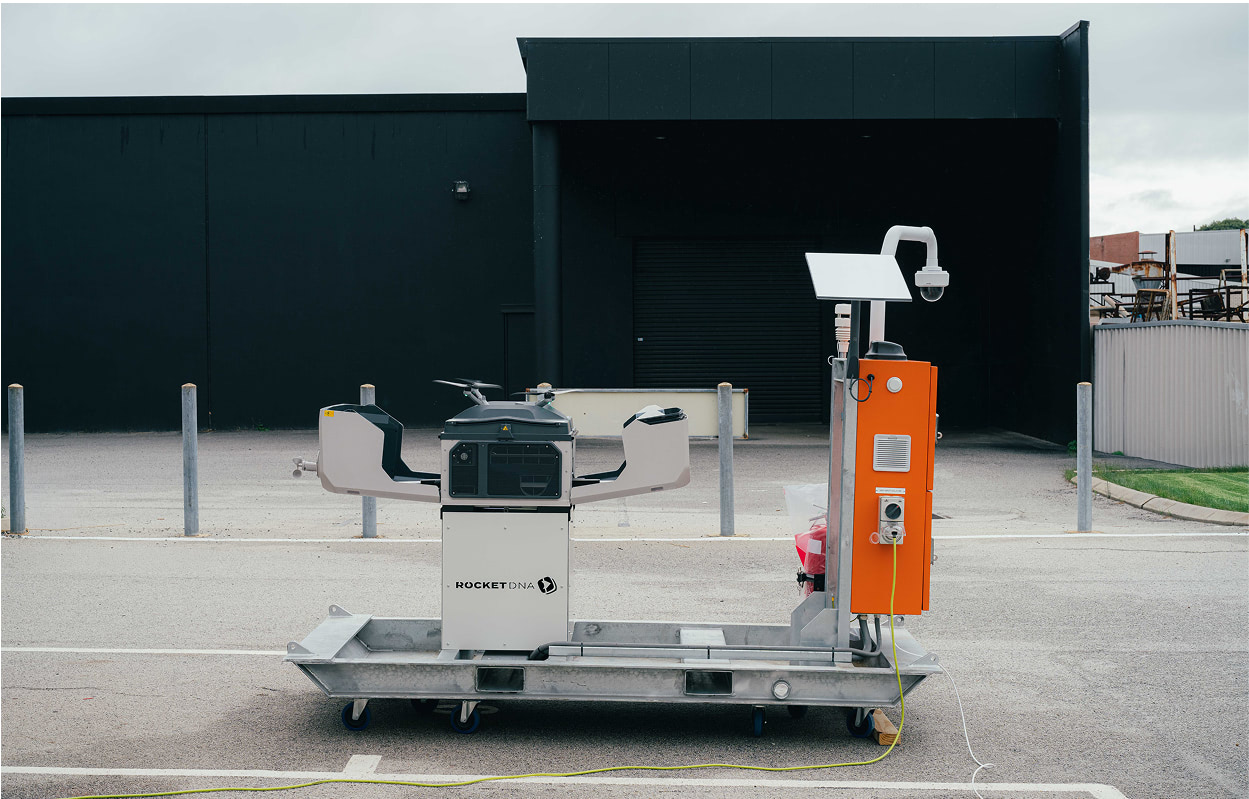

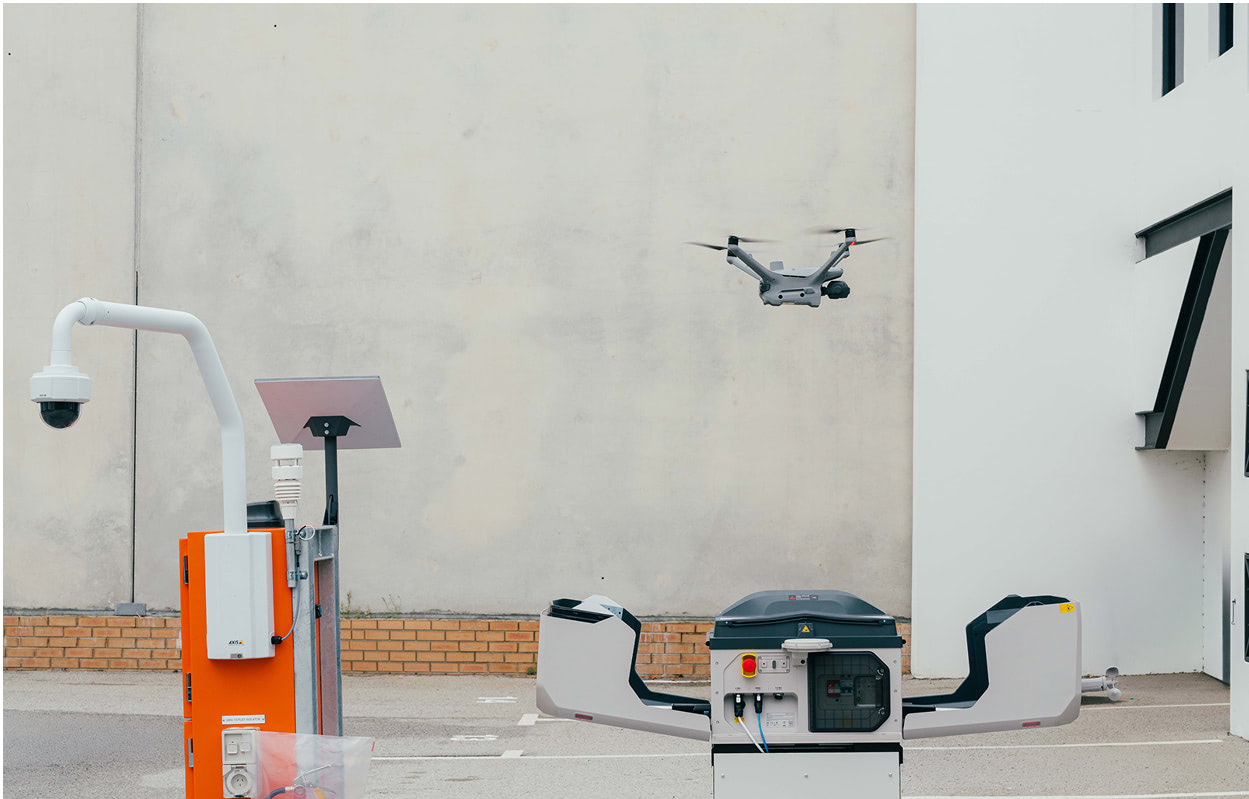

The RocketDNA xBot® enables easy on-site set-up of remote docking systems, as well as consistent, reliable data capture. The xBot® is able to withstand extreme weather conditions and comes with built-in CCTV, Weather Station & Fire Safety Systems. From perimeter monitoring to frequent survey and mapping, RocketDNA's xBot® ensures fast and efficient operations with real-time insights.
Available Packages
Export Ready, Made in Australia
Fast Deployment
RocketDNA’s modular, skid-based xBot® system is designed for easy, onsite set up of remote drone docking systems.
All Weather
The xBot® is able to withstand extreme weather conditions. The DJI dock is IP55 rated; flights are auto‑aborted above 12 m/s gusts or if heavy rain is detected by the integrated weather station.
Remote BVLOS-approved
RocketDNA has approvals for Remote Drone Operations in Australia and South Africa. Specific CASA area approvals for Australia & on-going compliance included with our fully-serviced solutions.
Industrial Design

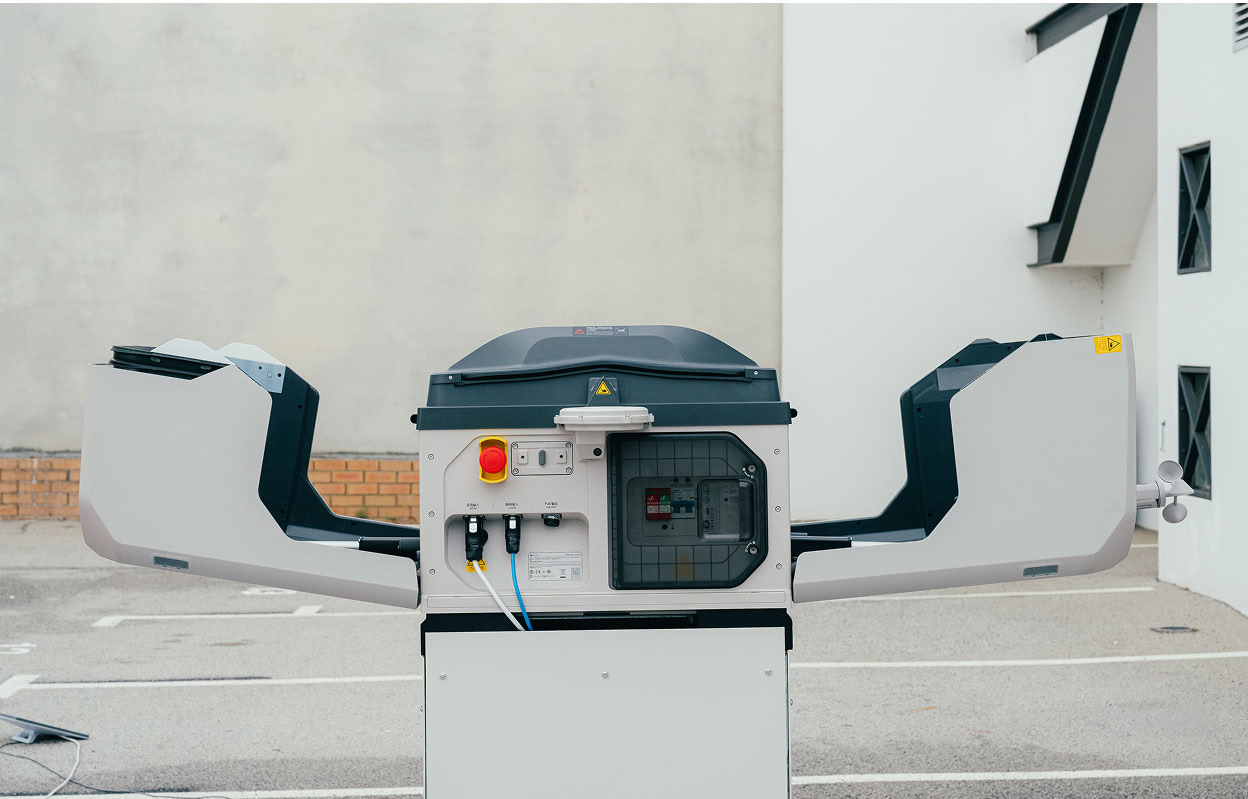

The Australian designed and manufactured galvanised steel skid platform includes an industrial comms & power management panel.
.jpeg)
Key Features include:
Key features of the RocketDNA xBot Mine-Spec version:
- Easy On-Site Set-Up of xBot® Dock Station
- Built on robust steel skid with forklift holes
- Able to withstand extreme weather conditions
- Consistent, reliable data capture for various industries
- Able to integrate with RocketDNA PowerSkid system (including solar power option)
- Variety of drone integrations available – inclu thermal options
Hardware Specifications
- Product Name RocketDNA xBot
- Total Weight
- 34 kg (without aircraft)
- The actual product weight might vary due to differences in batch materials and external factors
- Dimensions
- Dock Cover Opened: 1228x583x412 mm (LxWxH)
- Dock Cover Closed: 570x583x465 mm (LxWxH)
- The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
- Input Power Max 1000 W
- Operating Temperature
- -25° to 45° C (-13° to 113° F)
- When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
- Ingress Protection Rating IP55
- Max Operating Altitude 4000 m
- Receiving Frequency of RTK Base Station Satellite
- Simultaneously receive:
- GPS: L1 C/A, L2
- BeiDou2: B1l, B2l, B3l
- BeiDou3: B1l, B3l
- GLONASS: L1, L2
- Galileo: E1, E5B
- Positioning Accuracy of RTK Base Station
- Horizontal: 1 cm + 1 ppm (RMS)
- Vertical: 2 cm + 1 ppm (RMS)
- Battery Capacity 12 Ah
- Output Voltage 12 V
- Battery Type Lead-acid battery
- Battery Life > 5 hours
