New Product
Drone-in-a-Box for Enterprise
Starting from
R1336859.94
A$ 115,000.00
excl GST

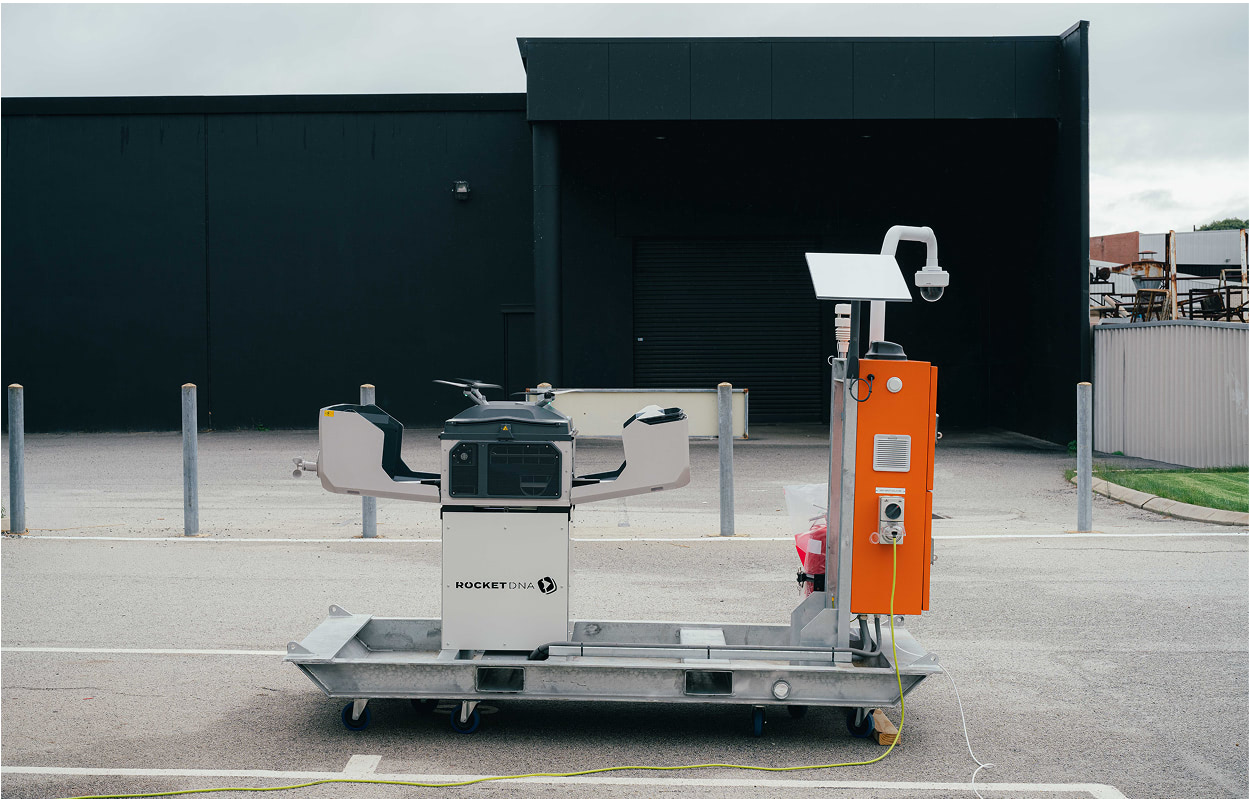

The RocketDNA xBot® enables easy on-site set-up of remote docking systems, as well as consistent, reliable data capture. The xBot® is able to withstand extreme weather conditions and comes with built-in CCTV, Weather Station & Fire Safety Systems. From perimeter monitoring to frequent survey and mapping, RocketDNA's xBot® ensures fast and efficient operations with real-time insights.
Available Packages
Export Ready, Made in Australia
Fast Deployment
RocketDNA’s modular, skid-based xBot® system is designed for easy, onsite set up of remote drone docking systems.
All Weather
The xBot® is able to withstand extreme weather conditions. The DJI dock is IP55 rated; flights are auto‑aborted above 12 m/s gusts or if heavy rain is detected by the integrated weather station.
Remote BVLOS-approved
RocketDNA has approvals for Remote Drone Operations in Australia and South Africa. Specific CASA area approvals for Australia & on-going compliance included with our fully-serviced solutions.
Industrial Design
The Australian designed and manufactured galvanised steel skid platform includes an industrial comms & power management panel.
.jpeg)
Key Features include:
Key features of the RocketDNA xBot Mine-Spec version:
- Easy On-Site Set-Up of xBot® Dock Station
- Built on robust steel skid with forklift holes
- Able to withstand extreme weather conditions
- Consistent, reliable data capture for various industries
- Able to integrate with RocketDNA PowerSkid system (including solar power option)
- Variety of drone integrations available – inclu thermal options
Hardware Specifications
Dock
Product Name
RocketDNA xBot (Mine-spec Version)
Total Weight
400kgs Incl Dock & Aircraft on robust galvanised steel skid
The actual product weight might vary due to differences in batch materials and external factors
Dimensions
400 x 2700 x 2400
The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
Connectivity
Starlink, WiFi & Ethernet
Monitoring & Safety
Built-in CCTV, Weather Station & Fire Safety Systems
Communications
Industrial Electrical & Comms Panel
Product Name
DJI Dock 2
Total Weight
34 kg (without aircraft)
The actual product weight might vary due to differences in batch materials and external factors
Dimensions
Dock Cover Opened: 1228x583x412 mm (LxWxH)
Dock Cover Closed: 570x583x465 mm (LxWxH)
The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
Input Voltage
100-240 V (AC), 50/60 Hzk 2
Input Power
Max 1000 W
Operating Temperature
-25° to 45° C (-13° to 113° F)
When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
Ingress Protection Rating
IP55
Max Operating Altitude
4000 m
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B
Product Name
DJI M3D or M3TD
Max Takeoff Weight
1610 g
DimensionsMax Wind Speed Resistance
During Operation: 12 m/s
During Takeoff/Landing: 8 m/s
Max Takeoff Altitude
4000 m
Max Flight Time
50 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 46.8 kph in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Global Navigation Satellite System
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when the RTK module is enabled.)
Hovering Accuracy Range (windless or breezy)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning:
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
Operating Temperature
-20° to 45° C (-4° to 113° F)
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B
Ingress Protection Rating
IP54
DJI Matrice 3D
DJI Matrice 3TD
Wide-angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
No mechanical shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
56x hybrid zoom
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
56x hybrid zoom
Thermal Camera
N/A
40mm Format Equivalent
28x Digital Zoom
↳ Normal Mode
640x512@30fps
↳UHR Infrared Image Mode:
1280x1024@30fps(With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
Skid-Mounted Power System:
- Integrates with xBot® System
- Hybrid Battery & Diesel Generator Power System (240v)
- Remote Monitoring & Control
- 10kWh of Lithium-ion Battery Power
- 6kVa Diesel Generator + 100 litre fuel tank
- Built for high-temperature environments
- SolarSkid-input ready (max 2 skids)
- (Optional: ADS-B Receiver)
Skid mounted Solar System:
- 1.78kWp
- Galvanised Steel Skid Platform
- Built for high-temperature environments
- Adjustable from zero to 40 degrees
Product Reviews
Related Accessories
No items found.
Frequently Asked Questions
00
How reliable is the xBot? What kind of extreme environments can it operate in?
00
What do I require on-site to operate a xBot?
00
How long does it practically take to deploy?
00
What is required with regards to Regulatory Approvals & Beyond Visual Line of Site?
00
Who is monitoring the drones and where are they located?
00
What Commercial models do you offer?
00
What integrations are available? How do I access and share my data?
